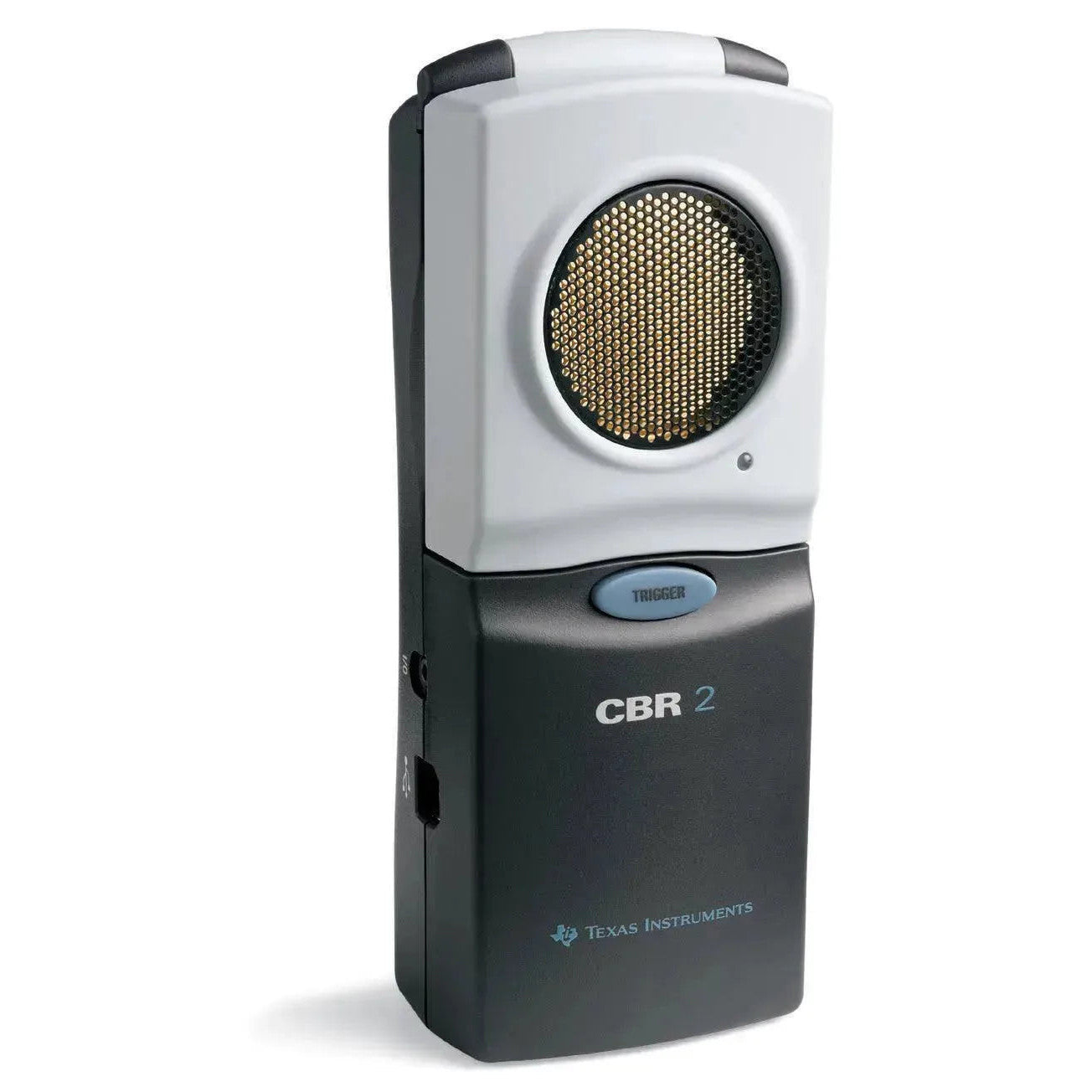

Texas Instruments CBR 2

CBR™ 2 device capabilities and highlights:

• Includes five sample classroom activities for math and science
• Pivoting sensor head for easy positioning (measure distance, velocity and acceleration — up to 50 samples per second)
• Upgraded design and color
• USB connectivity to the TI-Nspire™ family of graphing calculators, TI-Nspire™ software, and TI-84 Plus family graphing calculators
• Record data from 15 cm (5.9 in.) to 6 m (19.7 ft.)
• Sensitivity switch for normal and track modes
• Use with dynamic tracks, coffee filters, graph match, ball-toss and other activities
• Improved real-time graphing

• TI-84 family graphing calculators
• TI-Nspire™ family of graphing calculators

• CBR™ 2 sonic motion detector
• USB CBR™ 2 calculator cable (for use with TI-84 Plus family graphing calculators)
• Extended length I/O cable, for connecting to calculator input/output port
• Four AA batteries
• Guidebook: Getting Started with the CBR™ 2 device

USB plug-and-collect

The CBR™ 2 motion sensor plugs into TI-Nspire™ and TI-84 Plus families of graphing calculators using the USB CBR-to-calculator cable. Using the CBR™ 2 system and the Vernier DataQuest™ App for TI-Nspire™technology, students can kinesthetically explore motion and graphing with the Motion Match feature.

They simply plug in the CBR 2™ device and watch the Vernier DataQuest^®App launch automatically. Once they choose Motion Match, challenge your students to match the graph by walking back and forth using the CBR 2™ device. Students enjoy changing their position and speed as they attempt to get the perfect match.

Students can also begin collecting data immediately using their TI-84 Plus family calculator (Vernier EasyData^® app required). The device will automatically launch the app and begin displaying the current distance reading. Also select from several easy-to-use activities that are already built in.

Built-in functionality

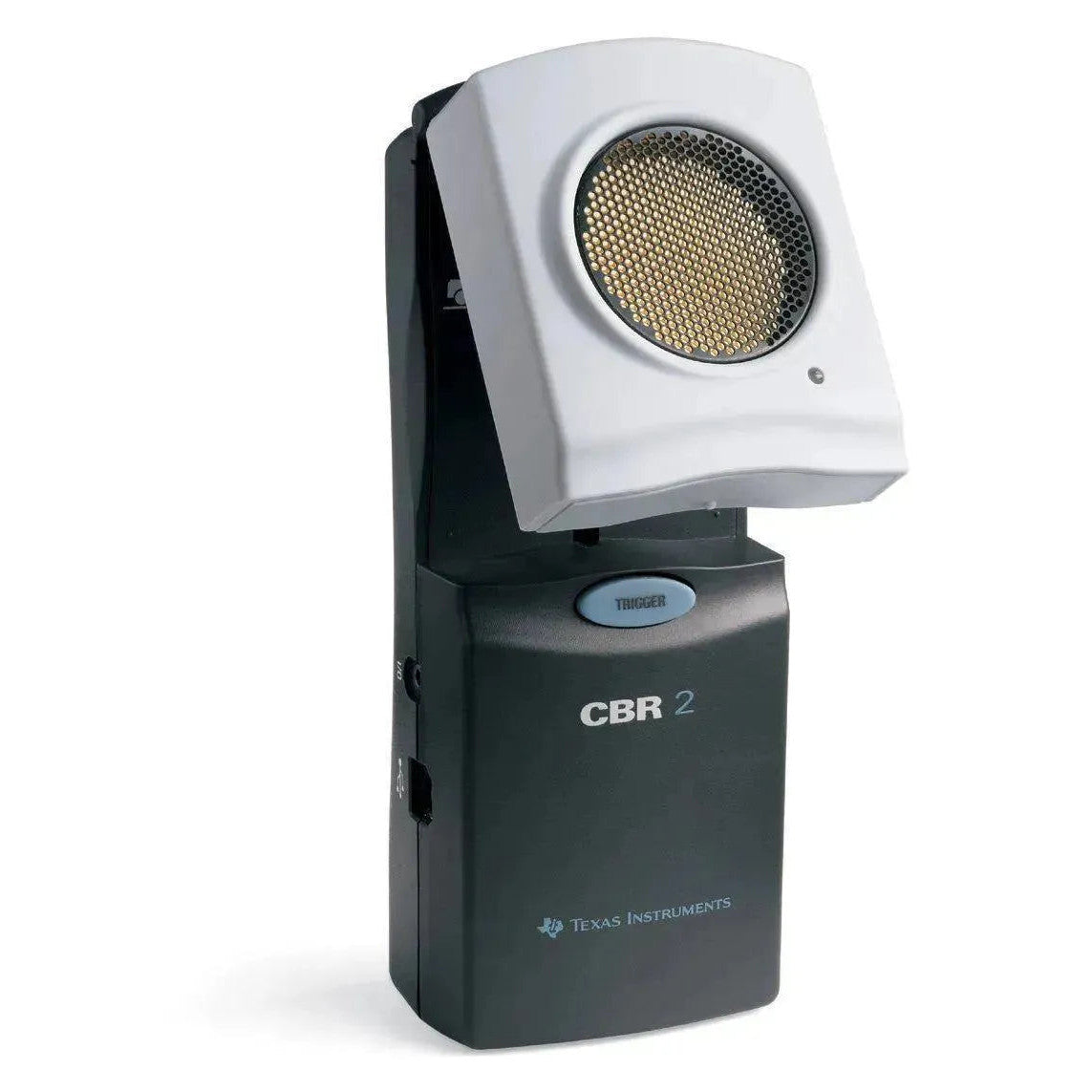

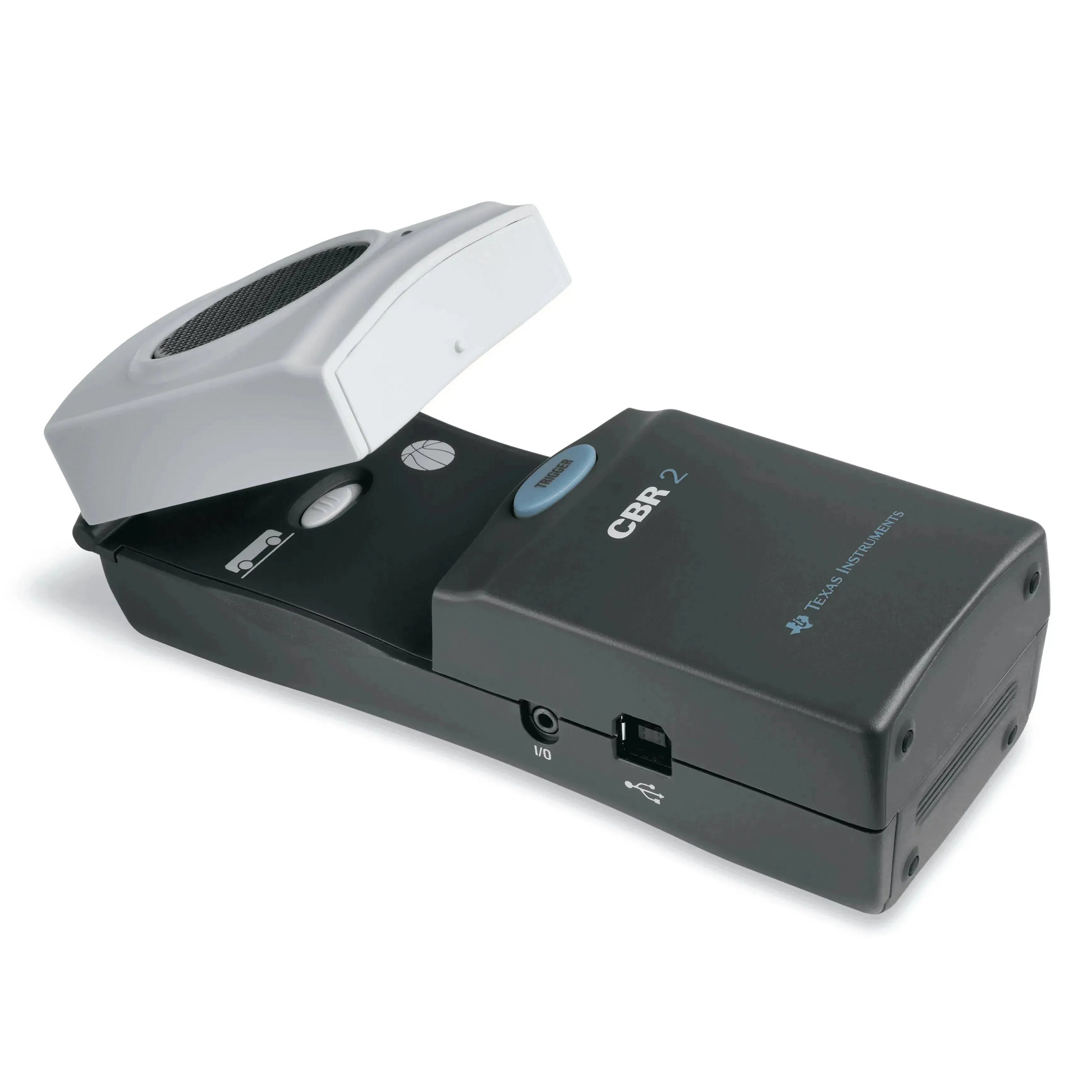

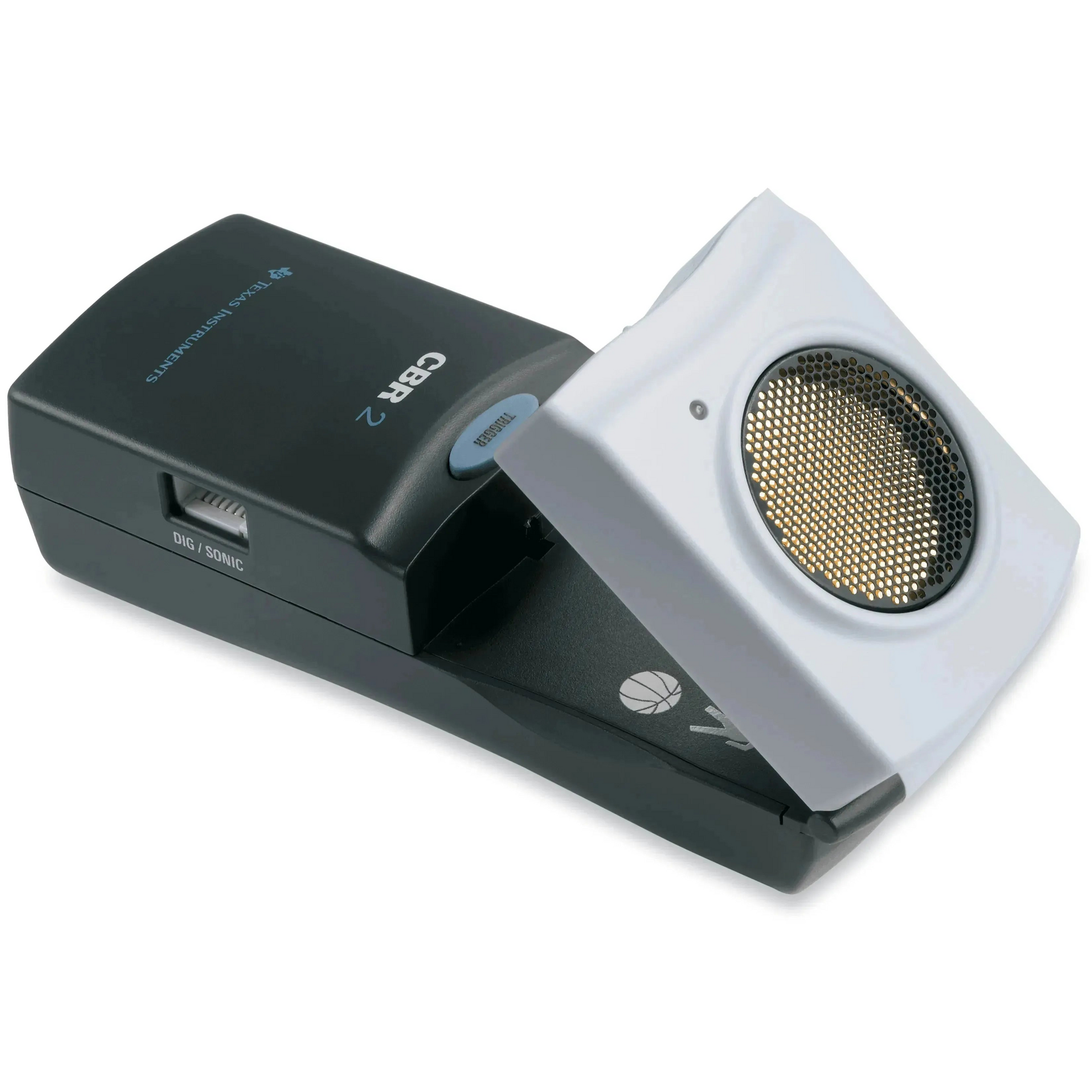

• Pivoting sensor head (0^o – 180^o)
• Measures object distance from 0.15 m – 6 m (5.9" – 19.7 ft.)
• Compute 1st and 2nd derivatives (velocity and acceleration) on collected distance data
• Rugged construction: Designed to withstand classroom use
• Lightweight and comfortable hand-held operation
• Versatile mounting options with standard camera tripod mounting socket and removable multipurpose clamp which accommodates surfaces of 0" - 2" thickness
• Self-contained application programs are multipurpose and menu-driven, offering simplicity for the novice and flexibility for the accomplished user
• Status indicators: red/green visible; dual-tone audible (can be disabled)
• Choice of units: feet or meters
• Variable sampling interval: .05 sec - 1500 sec
• Temperature compensation available for enhanced accuracy
• Real-time distance, velocity and acceleration
• Data smoothing options: light, medium, heavy
• Triggering options: calculator ENTER key; CBR™ TRIGGER button; time delay
• Repeat Sample option uses existing parameters
• Easy Sample option quickly initiates a sample using default settings
• Operates detached from calculator after setup
• Input/output port for direct communication with TI-73 Explorer™, TI-82, TI-83, TI-83 Plus, TI-84 Plus, TI-84 Plus Silver Edition, TI-84 Plus C, TI-85, TI-86, TI-89, TI-92, and TI-92 Plus graphing calculators
• USB port for direct communication on TI-84 Plus, TI-84 Plus Silver Edition, TI-84 Plus C, TI-Nspire™ and TI-Nspire™ CX graphing calculators
• Send data and graphs from calculator to a computer via TI-GRAPH LINK™
• Operates as a CBL™/MBL motion probe
• Operates with CBL™ (SONICchannel) programs
• User Guide with classroom-ready math/science activities for grades four through 12

Hardware

• Four AA batteries included
• Six-inch unit-to-unit link cable included
• CBR™ 2 User Guide with classroom activities included
• TI resource CD with Technical Reference included
• Size: 8.5 x 3.4 x 1.1 inches (L x W x H)
• Weight: 8.3 ounces (without batteries)

Support

• One-year limited warranty
• Toll-free help hotline: 1.800.TI.CARES
• Email help line: ti-cares@ti.com

Package Dimensions: 13.2 in x 9.8 in x 2.6 in

MPN: CBR2/PWB/11E1/A

UPC: 033317191239
